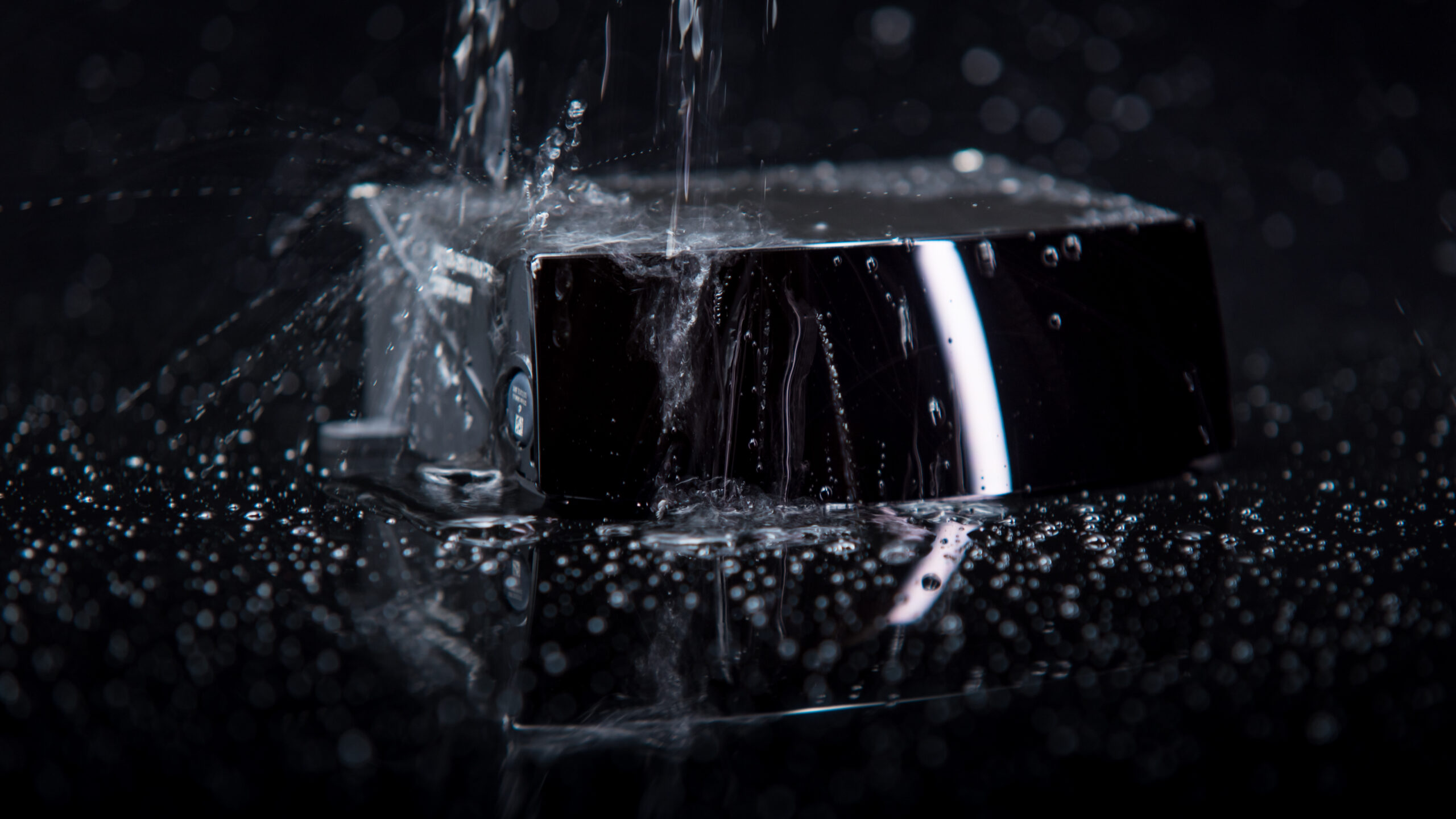

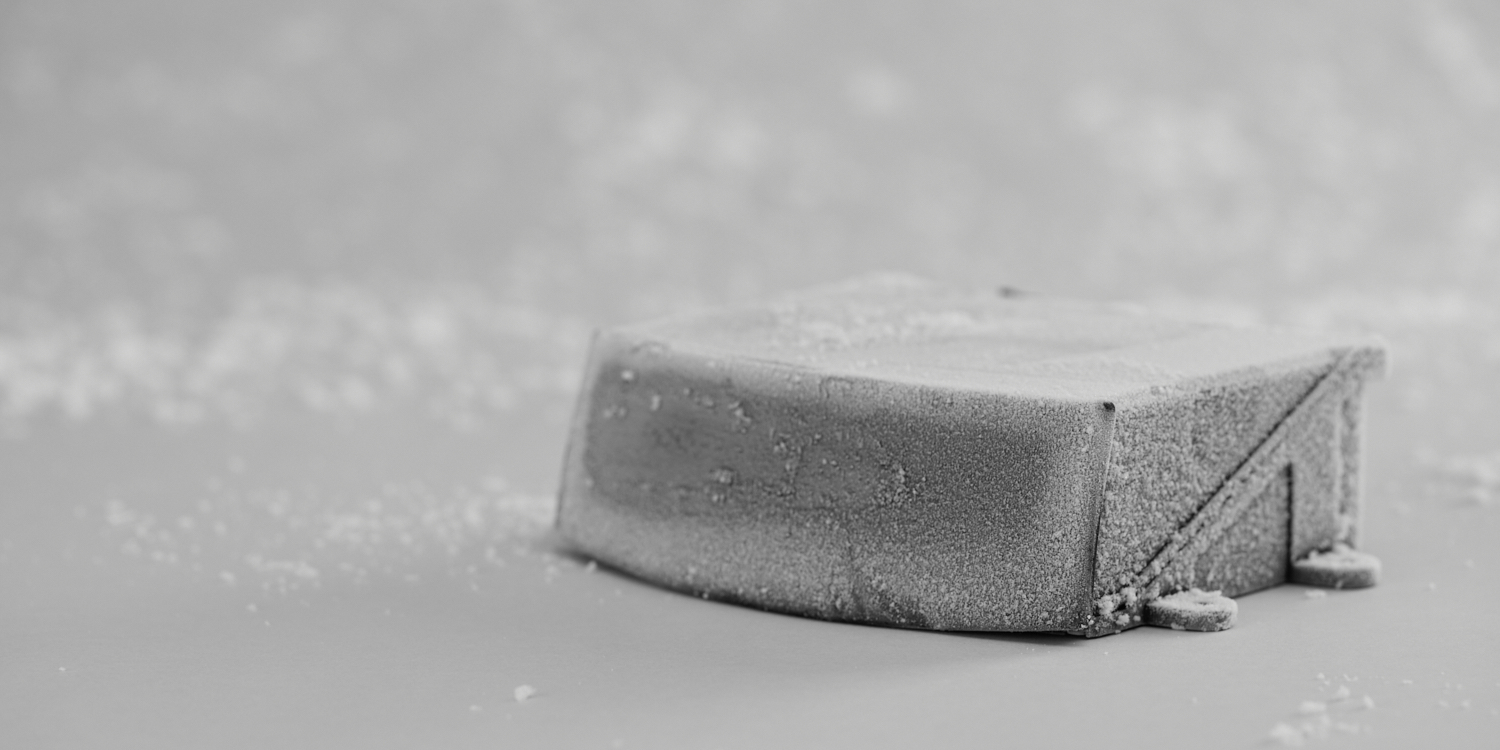

All key components meet AEC-Q and other relevant standards.More than 50 design validation (DV) tests, conducted according to internationally recognized OEM standards such as electrical, mechanical, climatic, sealing, material, and EMC tests.
XT32-16 |

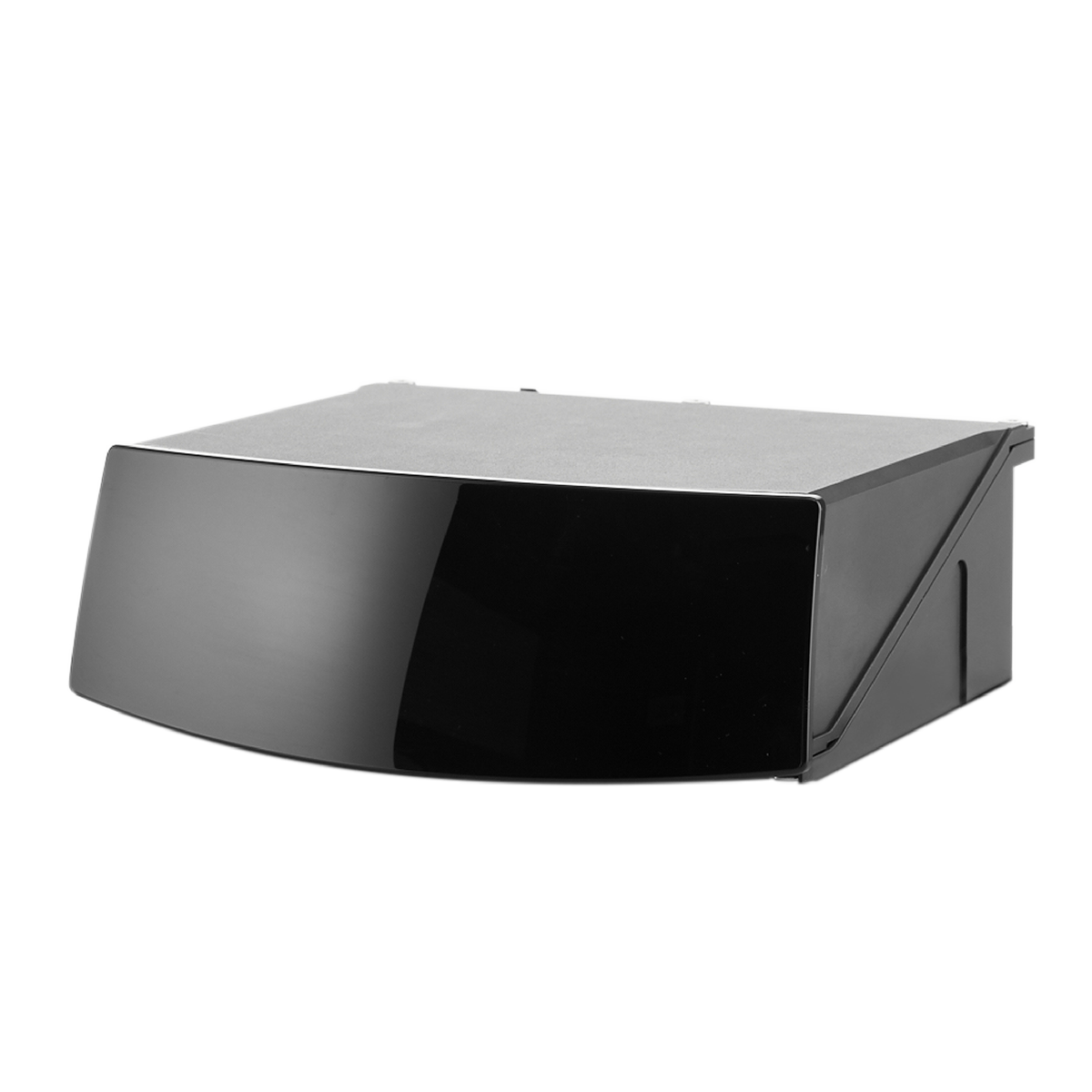

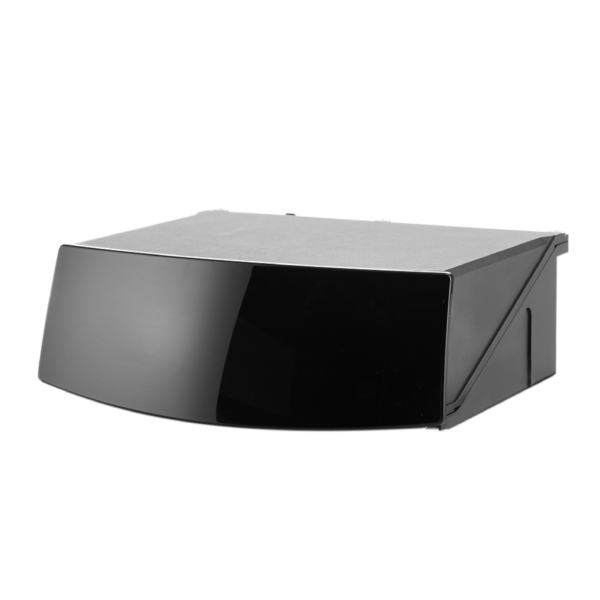

AT128 |
XT32M |
QT128 |

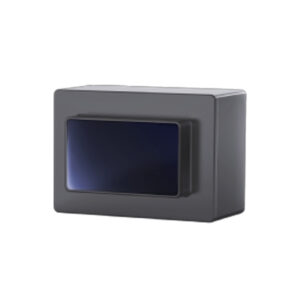

FT120 |
OT128 |
|
|---|---|---|---|---|---|---|
| Object Detection | ● | ● | ● | ● | ● | ● |
| Mapping | ● | ● | ● | |||
| Object Identification | ● | ● | ● | |||
| Channels | 16/32 | 128 | 32 | 128 | 120x160 | 128 |
| Field of View | 360° X 31° | 120° X 25.4° | 360° X 40.3° | 360° X 105.2° | 100° X 75° | 360° X 40° |
| Range | 80m @ 10% Reflectivity | 210m @ 10% Reflectivity | 80m @ 10% Reflectivity | 20m @ 10% Reflectivity | 22m @ 10% Reflectivity | 200m @ 10% Reflectivity |
| Min Range | 0.05m | 1m | 0.5m | 0.05m | 0.1m | 0.3m |
| Weight | 0.8 kg | 0.94 kg | 0.49 kg | 0.7 kg | 0.7 kg | 2.2 kg |
| Accuracy | 1 cm | 5 cm | 1 cm | 3 cm | 5 cm | 3 cm |
| Max Range | 120 m | 260 m | 300 m | 50 m | 50 m | 230 m |
| Resolution Horizontal | 0.09° - 0.36° | 0.1° - 0.2° | 0.09° - 0.36° | 0.4° - 1.6° | 0.625° | 0.1° - 0.4° |
| Resolution Vertical | 1°/ 2° | 0.2° - 0.8° | 1.3° | 0.4° - 1.6° | 0.625° | 0.125° - 1.72° |
The prices quoted are DAP and do include shipping, but do NOT include tariffs. If the sensor will be shipped to the US and you prefer DDP pricing (including tariffs), please contact our sales team at hesai@cratustech.com.
Hesai maintains a healthy stock of all their standard sensors (usually in the hundreds), so lead time is typically 2-3 weeks from receipt of order.
Yes! For larger orders, please contact our sales team at hesai@cratustech.com.
The lidar sensors come with a connection box, a cable that connections the lidar to the connection box, and a power supply. You only need to supply an RJ45 ethernet cable to connect to the connection box.
Yes, both CRATUS and Hesai have technical support staff in the US and abroad to support our customers.
No, the connection box translates automotive ethernet to standard ethernet and provides a convenient power connection. Customers who want to directly integrate the lidar may do so.
Sensors do NOT contain any form of wifi or wireless communication method and it does NOT include a hard disk drive to store data.
