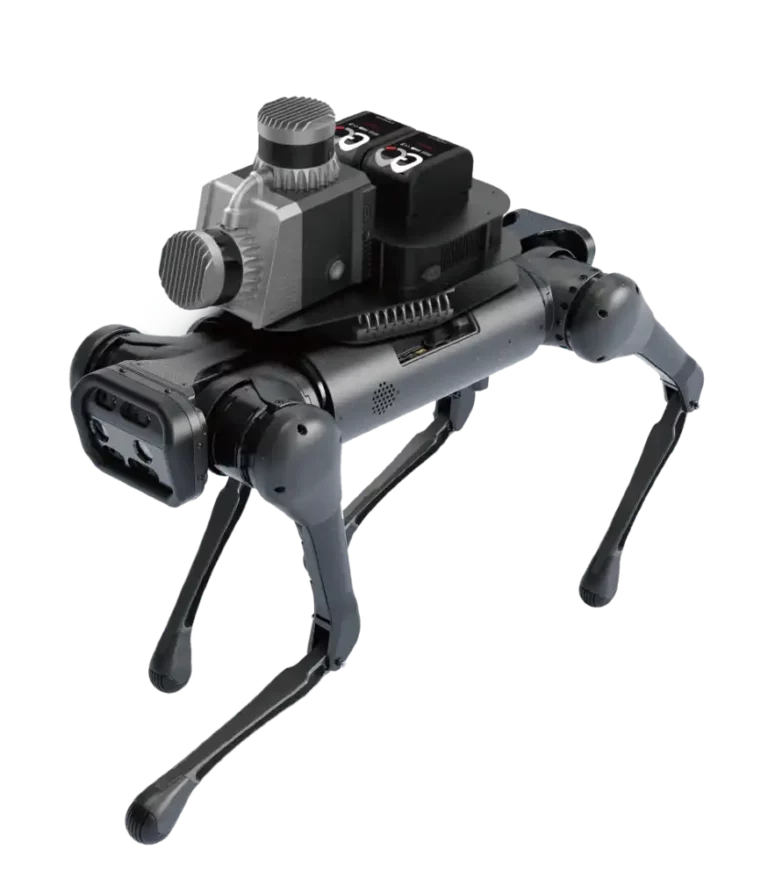

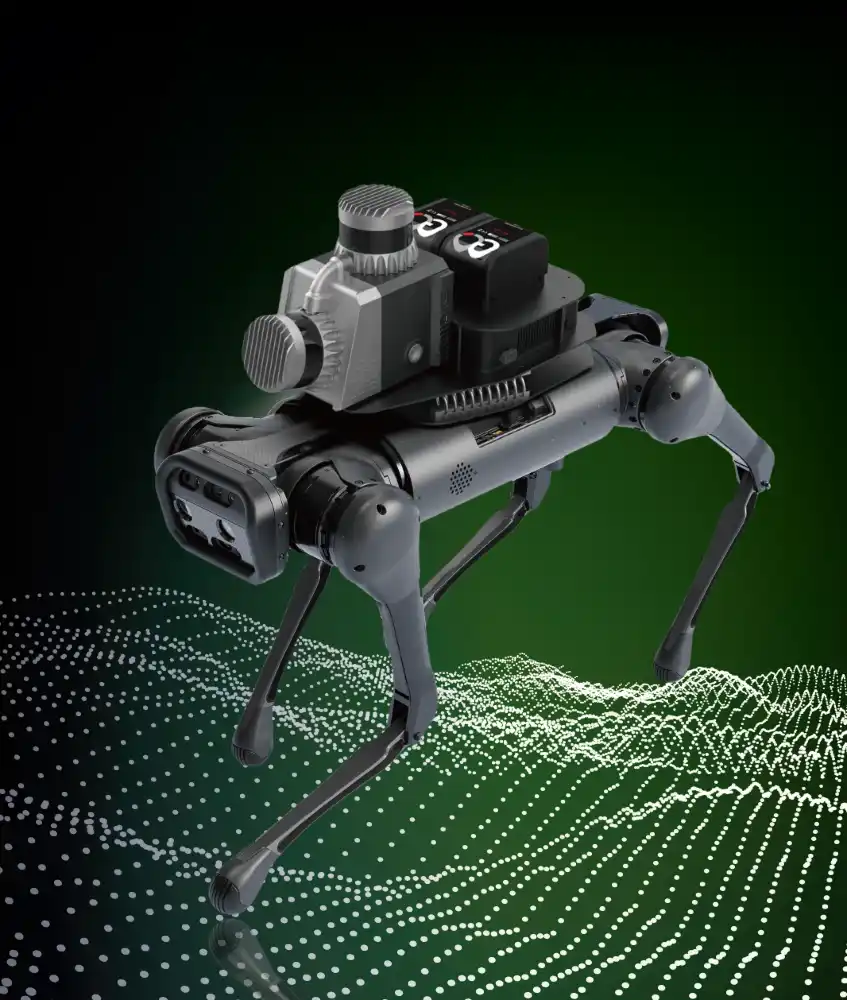

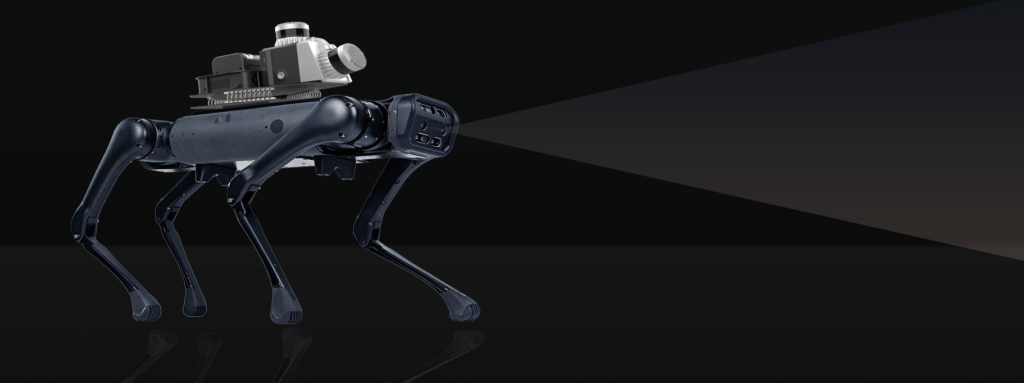

G2 Robot Dog Real-time 3D scanning system
Remote, real-time, secure, advanced
High precision
Weather resistance
Long distance
Large angle
Multi-platform support
Real-time solution
Remote monitoring
Dual laser head
New way of mobile
measurement
GOSLAM products work on the principle of laser SLAM. Using its own attitude data and laser point cloud to restore three-dimensional data. Complete and accurate data can be presented without GPS and other external auxiliary positioning equipment. The operation is very simple. The product has real-time drawing and preview function. Fully realize what you see is what you get. It can be connected with intelligent robot dog to form G2 real-time 3D scanning system. More diverse ways of working. It can realize wireless real-time remote scanning and visibility. Fast data acquisition in potentially hazardous areas.
Remote control, unmanned operation
Mobile APP remote real-time preview to ensure data is correct
Extensive application scenarios and multi-industry support
Survey and scan in dangerous no man’s land
Color status screen
New color status display, larger size, support more status
information display, as well as the use of instructions,
easier to use and easier to use.
G2.PARAM
Weight (with battery):
19±1kg
Endurance:
2.5-4.5h
Length, width and height (standing):
0.65*0.31*0.6m
Length, width and height (folding transportation):
0.60*0.31*0.15m
Maximum walking speed:
1.5m/s
Climbing angle:
≤25°
Freedom of the machine (click number):
12
Load capacity:
10KG
Battery capacity:
13000mAh
Number of foot force sensors:
4
Reducer wear protection:
Supported
Hd real-time picture transmission:
Supported
